Description:
In any UAV platform, redundancy and diversity of frequencies used in communications can provide a more secured and unlimited range. Using both Wi-Fi and a mobile network is a typical use case. Multipath TCP is the candidate to be used for increased redundancy. This will provide a transparent communication to the UAV from Wifi (80~100 meters) to 3G/ 4G (mobile covered areas) with both: phone to phone long range telemetry, and UAV control. A diversity of pilots is also desirable, especially in learning environments where a second smartphone-controller can easily avoid the firsts crashes due to absence of pilot experience. Allowing the teacher to gain control if any incident happens.
To be Coded:

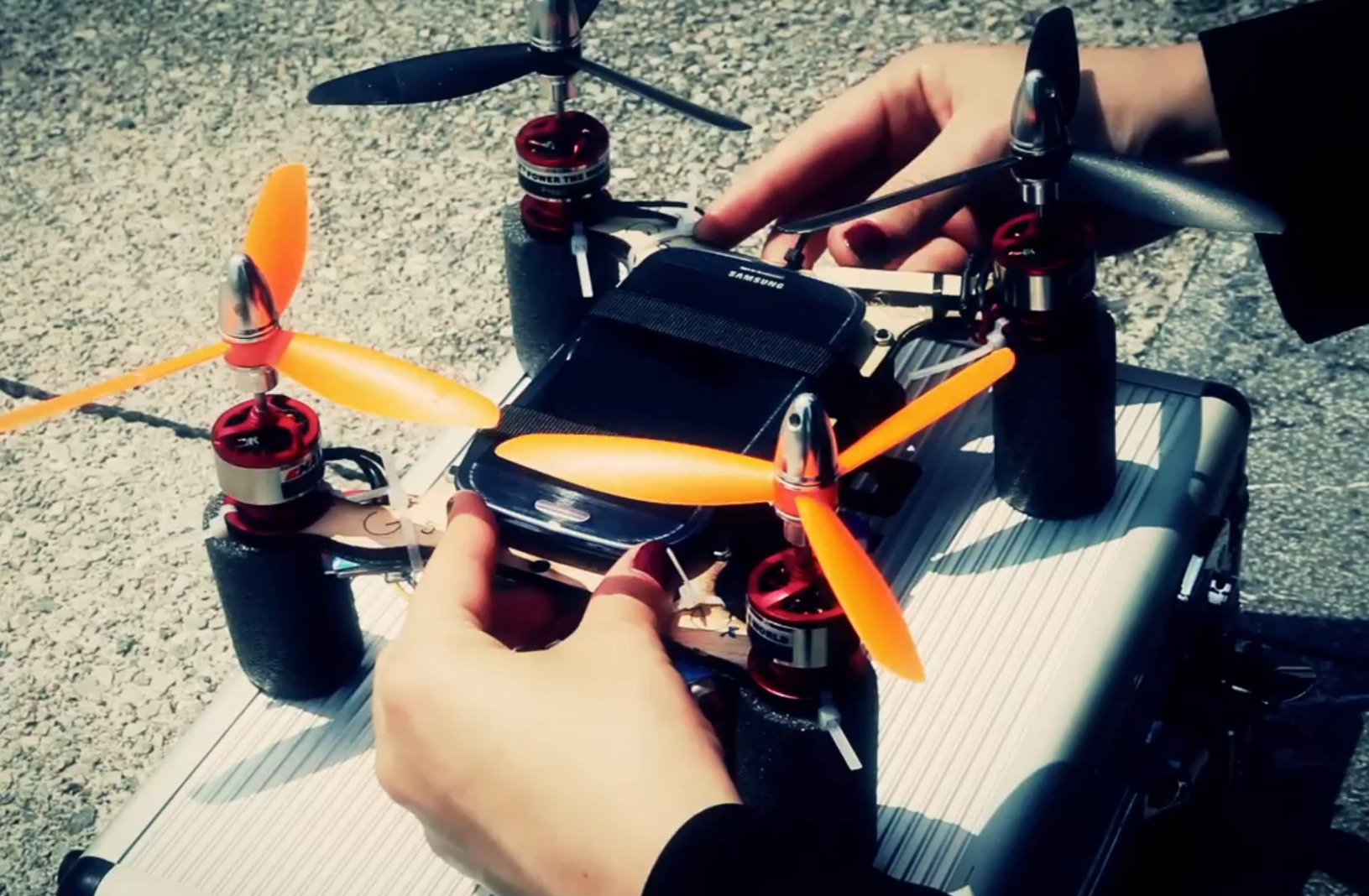

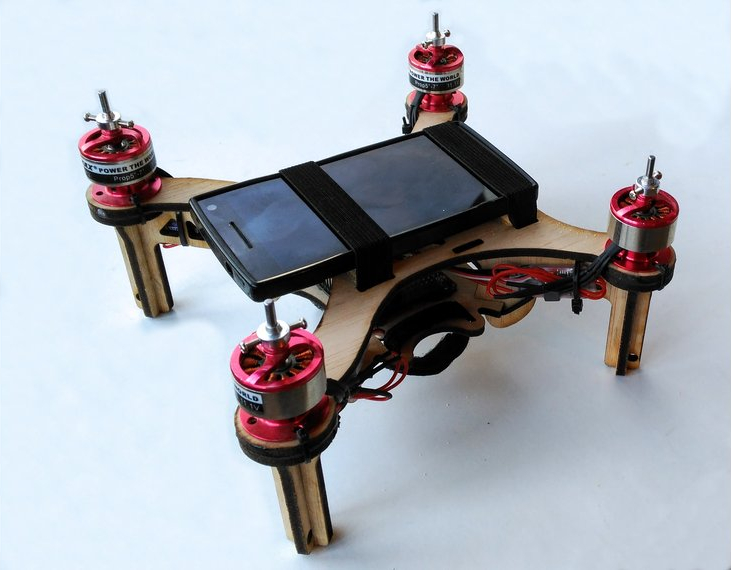

Rewrite the communications of the app for include MultipathTCP. Using a phone to drive the drone, and another one on the drone to connect the drone to the network. Include the possibility of simultaneous smartphone-controllers connected to the same network of the drone to control. In order to make this process of network configuration more easy, could be done with Wifi Direct or NFC. Communication should work with really low baudrate using wireless serial links.
Skills needed:
Java Android Developer TCP/IP Networks and communication.

Description:
New features of the flone drone flying app should be improved, especially a new design of the user interface for a complete experience, and resolve the existing issues or bugs documented in the github, like having a button for one-click auto-configuration of all values of the flight board (PID’s, flight modes, failsafe, etc).
To be Coded:
User Interface:
Show altitude of the drone above the ground. Show the GPS location of the UAV. Estimated distance to the drone. Add visual feedback and alarms.
Security:
Add an EMERGENCY button (stop motors) Add an autoland button. Add a RTL Return to Launch button. Show voltage of remote battery of UAV. Trigger an alarm in case of low battery. Show quality of signal of the connection. Trigger an alarm in case of low signal or noise.
Usability:
Redefine Experience activity: Experience should be defined with the following parameters: Maximum throttle / velocity. Maximum altitude. GeoFence maximum distance. Automagic heading: the drone will mimic the orientation of the smartphone automatically, this mode should be redefined because actually is not working properly. Make it easy to find a lost drone / smartphone. This feature should send messages with the smartphone location in case of loosing the connection between smartphones. If the smartphone loosed detect that is not moving for a long period start the procedure if has mobile data network send an email with the last GPS Location. If not, send a SMS with the location. The lost smartphone should switch on the light and emit an audio message every minute for facilitate the location.
Skills needed:
Java Android Developer Gaming User Interface designer.

Description:
Autonomous drones normally use a flight plan that need to keep, following movements with more complexity than follow a line is required for release all the potential of unmanned aerial applications. Previous experiences of this concept are developed with PixHawk like blockly in ROS but none with Multiwii. Don’t exist any easy way to program behaviours in this platform. The idea is to use drone programming using functional blocks like in Scratch, each block abstracts a behaviour that can be followed to the multi-rotor directly from a web browser.
To be Coded:
A graphic user interface client in HTML5 should be developed for controlling the drone. Communication in Multiwii Serial Protocol can be done in Python with pyMultiWii
https://github.com/alduxvm/pyMultiWi
https://github.com/erlerobot/robot_blockly
http://www.droneblocks.io/

Skills needed:
HTML5. 3D Visualization in Canvas
Python. For communication with Multiwii
Javascript. For dynamic graphics.

Description:
Mapp will be an Android App to run in a smartphone carried in any drone (ideally flone) to produce easily ortho-rectified, and lens-corrected pictures based on gyro+accel+magnet sensors, and geo-location by GPS. This app can reduce drastically time and resources needed to make orthomosaics. Time is crucial for fast responders like the successful deploy of HOT (Humanitarian Open Streetmap) in different catastrofes of last years. Ideally can be integrated with existing online open source mapping platforms like mapknitter.org The app can be based of a previous GSoC code: https://publiclab.org/notes/mercyorangi/08-16-2014/sky-cam-user-guide
To be Coded:
Every 3-5 seconds Mapp will record the orientation and position of the smartphone and take a picture. This data will be used to produce a directory with a collection of rectified pictures with the GPS location on the EXIF data. The generated images should be: GeoTIFF. PNG with transparent borders. JPG with white borders. Option to push generated orthomosaics to openaerialmap.org / mapknitter.org for community mapping and collaboration of simultaneous UAVS.
Skills needed:
Java Android developer.
Computer Vision. Ideally the app should be generated with OpenCV.

Description:
Is desirable to have pre-flight information to check previous the take off. Its purpose is not to be a GCS for Android, instead it focuses on functionality needed in flight preparation. This activity should provide information of different characteristics:
Legality related:
By country:
Laws around drones can be very different from country to country. A link to the law of the country detected by the location of the smartphone should be provided. There are some online directories to provide this information like dronelaw.in This information is useful not only for pre-flights, having a copy of the law is useful in case of any conflicts with neighborhood or law enforcement.
By Location:
Should show a Warning in case of be near 8 km from a list of airports.
Weather related:
Actual wind direction and velocity. For the actual values the app should use the magnetometer for show the direction of the wind. This on-app display will help to prevent wind-related accidents. The app should check at starting wind value in order to show a warning in case of exceeding the maximum wind value.
To be Coded:
A rational user interface with content-first approach should be designed to efficiently display all this data.
Skills needed:
Android Java
User Interface Designer

Description:
This onboard app will get profit of the mobile networks and/or WIFI for unlimited range FPV IP streaming a video. This video should be streamed to a Google Cardboard new App that also overlays on the video the basic telemetry data (altitude, distance and direction to home, battery level, artificial horizon, etc)
To be Coded:
A streaming app, on the onboard smartphone will coded with focus on low latency and the ability to adjust the quality of video to the quality of signal. Telemetry data should be displayed over the video like an OSD On Screen Display. The google Cardboard App can trigger with the volume UP button to start/stop HD video recording on the remote onboard smartphone, and trigger with the volume Down taking a picture.
Skills needed:
Java Android Developer
Video Streaming Experience
Google Cardboard.
OpenGL

Description:
The onboard app in the drone will generate KML & KMZ and Tlogs files that can be reproduced later in a browser. This idea have two goals: first the generation of files and then the reproduction of files in a HTML5 map with a timeline.
To be Coded:
On-board smartphone side: file generation as a part of the FLONE main app. Reproduction of the files and telemetry in a the user browser, with HTML5 and javascript. Possible link to Marc Gonzalez - GSOC 2016 - Panoramic Live Interactive Tracking for Liquid Galaxy for immersive and interactive public visualization. Inclusion of a slider and playbutton with different velocities for reproduction of flight.
Skills needed:
Java Android
Javascript
HTML5

Description:
Easy and low cost 3D Tracking is an unresolved problem in robotics field. This task is crucial for automatice indoor drone behauviours. This job is demonstrated to work in numerous papers and can be implemented with optical tracking from a pair of cameras. The idea is to implement an OpenCV Camera app that can track the brightest point of the image, that should be a light active or passive. And send X,Y coordinates via UDP to a another PC/smartphone that will integrate all coordinates received to get the x, y ,z 3D point. Getting the 3D coordinates will be very fast since image processing is done in parallel in the distributed network of connected smartphones.
To be Coded:
The camera app will have diferent states: Configuration, for adjust the limits of the image or the color to track. Tracking, In this mode the app can switch on the led flash in case of passive markers to detect the reflection. Another App should be developed for integrate the coordinates from the network of smartphones.
Skills needed:
Java Android Developer
OpenCV

Description:
For some utilizations, like fast location of objects or people in SAR missions, instead of using a Radio Control or a smartphone should be desirable to have an interface like google maps but with the aerial image in real time. The interaction with this app will translate to the drone the gestures that the user can do in a multitouch screen: Zoom IN, Zoom OUT, move to XY.
To be Coded:
App should present a Google map (loaded offline) and the IP video/picture from the drone, if the user zooms in,out or moves the map, the drone will move immediately to update the image. This application should have for improved security, a geo fence to limit the moving posibilities of the drone.
Skills needed:
Java Android Developer
Drone Experience

Description:
Planning a flight path in 3D to a drone is not an easy task. Normally planning software is based in 2D and designed for mapping. So, more complex desirable applications like light panting or air shows with drones are difficult to code. This app should present an HTML5 interface to make 3D flight paths for drones.
To be Coded:
An HTML5 map with 3d navigation to add waypoints. The app should taking care of the User Experience for design a rich interaction. App should export the flight path to the common drone file protocols, Ardupilot/PX4 and INav/Multiwii. A similar application to iOS and DJI drones are Scribble drone: ScribbleDrone https://github.com/dbaldwin/ScribbleDrone/wiki/ScribbleDrone-Beta
Skills needed:
Java Android Developer
User Experience
Python

Description:
Smartphone based gamepads can be used for controlling drones with a good user experience. This app will exploit this kind of connectivity controlling a drone from the input of the gamepad, sending the data control to the drone and using the screen as a ground station. The bluetooth controller can be similar to this one: http://www.banggood.com/Ipega-PG9023-Wireless-Bluetooth-Telescopic-Controller-Gamepad-Joystick-for-iOS-Android-Tablet-iPad-p-956065.html?p=JB1919987667201412AN
To be Coded:
App will read stick values by bluetooth, transform them in RadioControl values and send the control by Multiwii Message Protocool. App can be based in GPL Libre Pilot Android App taking desired features and porting to Multiwi communication. https://librepilot.atlassian.net/wiki/display/LPDOC/LibrePilot2Go+Android+App
The screen should visualize:
Arming state
Flight Mode
Drone Battery Voltage
Current Altitude
Vertical Speed in meters/second

Skills needed:
Java Android Developer
